PerfectpH Inline Edition User Guide

inlineedition

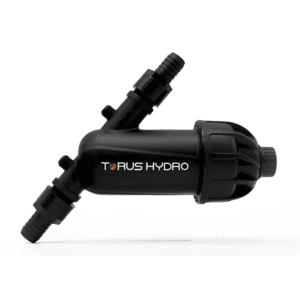

The perfectpH Inline Edition is our most versatile auto pH balancer yet. Using forced-flow circulation, passive pH control is now more efficient than ever for a wider variety of setups.

The Inline Edition now allows for compatibility with Drip Systems, Pre-Treatment Tanks, Bucket-Style Systems, Flood-and-Drain setups with infrequent flood schedules, and large Cloner Systems.

To set up, the Inline Edition is attached directly to the pump of your hydroponic system or pre-treatment tank using the supplied fittings.

Installation is simply plug-and-play.

This unit is sealed.

DO NOT FORCE OPEN.

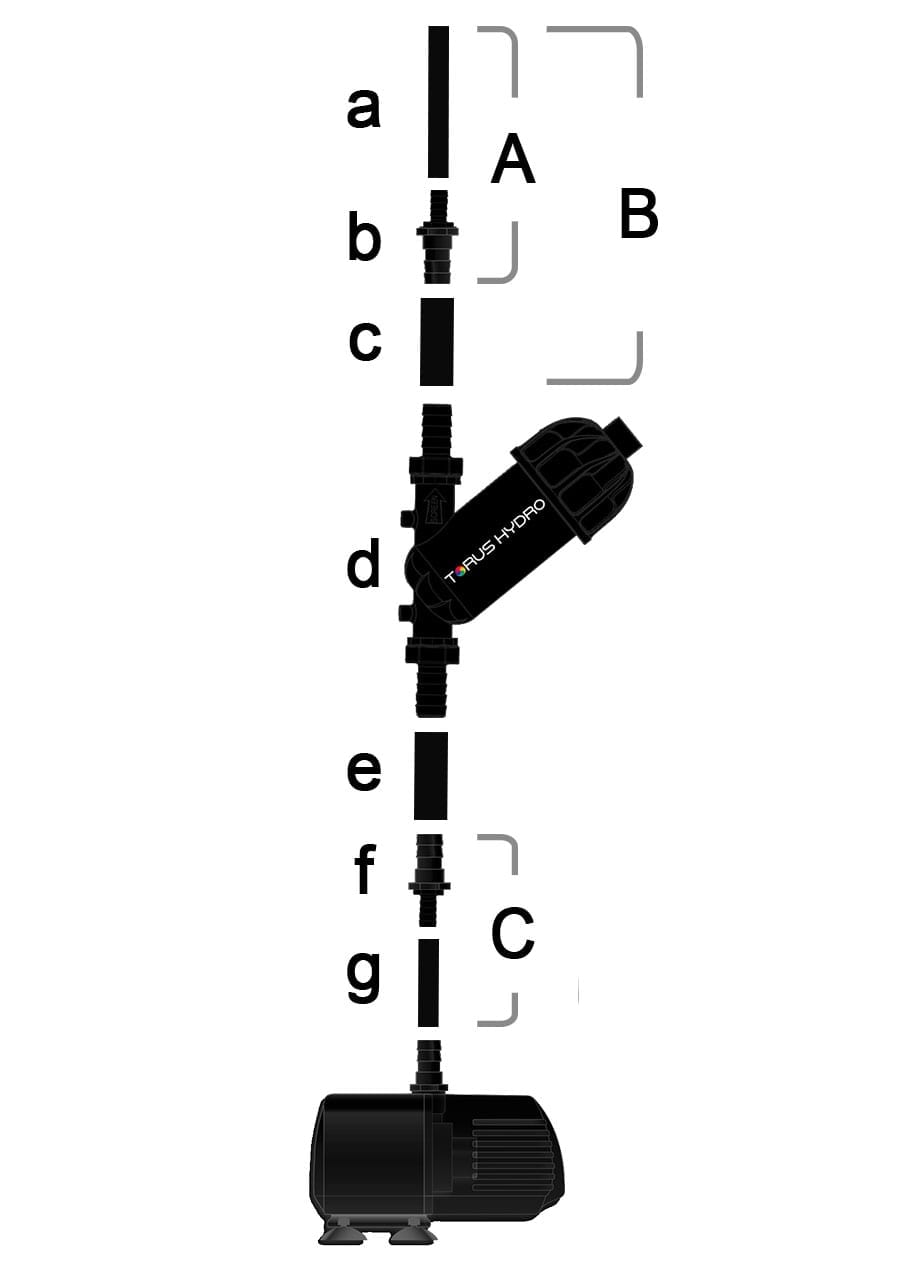

Assembly Overview

Tubing to System ( Not Included) - a

Adapter - b

Tubing Section - c

PerfectpH Inline Unit - d

Tubing Section - e

Adapter - f

Tubing from pump - g

Pump

assemply_web

A - Only required when tube size adaptation is needed.

B - Only required in recirculating systems

C - Only required when tube size adaptation is needed.

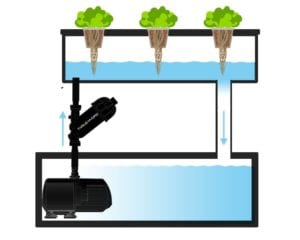

Use With Recirculating Systems

recirculating

PerfectpH Inline Edition is attached directly into the pump send line and the nutrient mixture circulates through the unit, passing it along to the system for recirculation. With the nutrient mix interacting so directly with the perfectpH, compatibility is now expanded to systems with low circulation and/or minimal root development, like drip systems, aeroponic systems, and cloners.

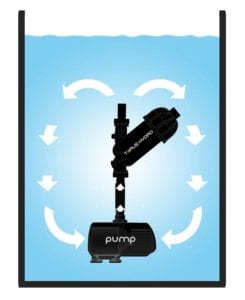

Use With Pre-Treatment Tanks

The PerfectpH Inline Edition is the first perfectpH that can be used in systems without actively rooted plants. The technology is so robost in its ion interaction that the device can be attached directly to a pump and placed in a tank of water/nutrient mix, balancing the pH of the solution as it circulates through the unit. This can be used for a variety of applications, including drain-to-waste systems and set-ups using soil.

pretreatment

Drain-To-Waste Systems
with secondary pump

dtw

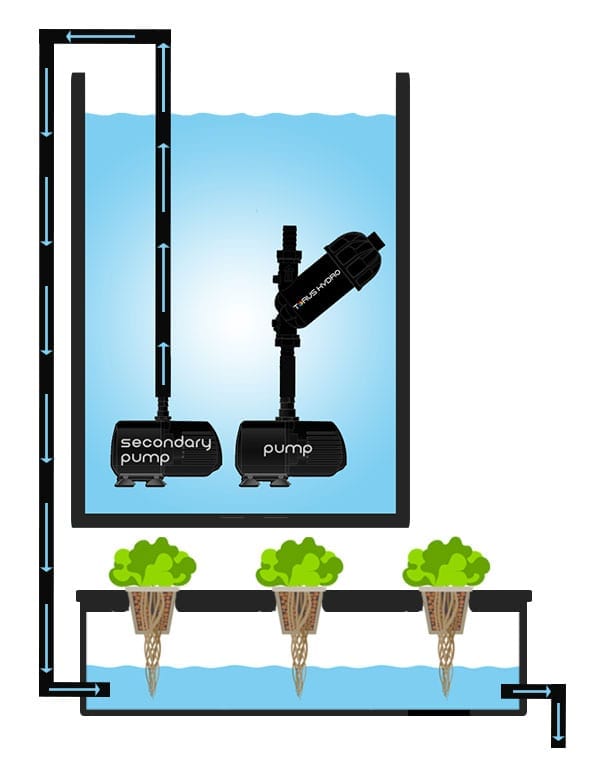

In Drain-to-Waste systems, the PerfectpH Inline Edition can be used by attaching the device to a pump, placing in a pre-treatment tank, and using a secondary pump to feed the mixture from the tank to the system.

Drain-To-Waste Systems
with gravity feed

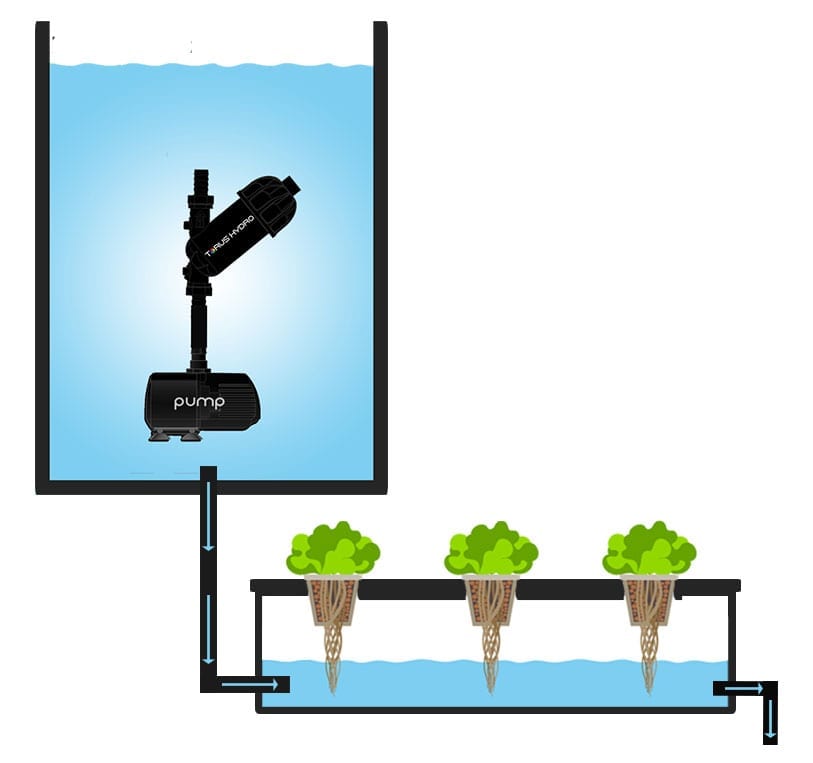

As well as using a secondary pump, the perfectpH Inline Edition can be used in Drain-to-Waste Systems by using a gravity feed line, delivering the nutrient mixture from the tank to the system.

Perfect for Auto-Pot systems.

gravity

How to Calibrate

calibrate

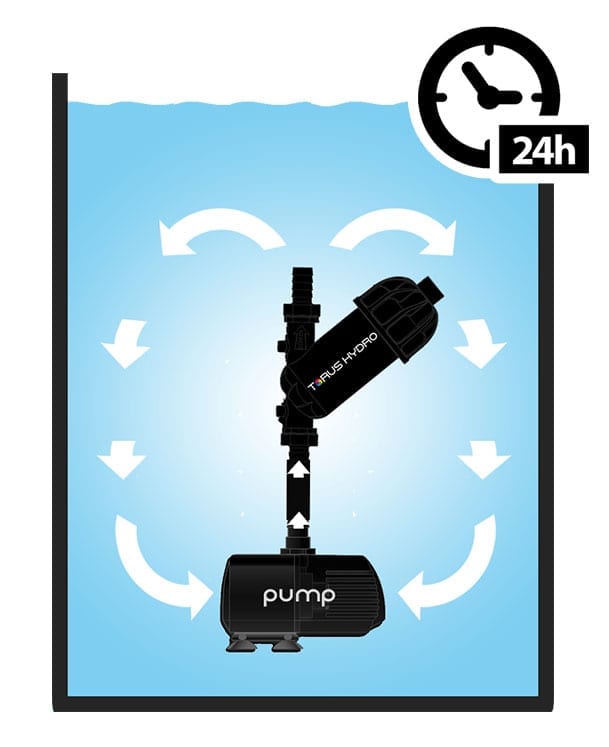

Before first use, run perfectpH in a tank or bucket of water with pump for 24-48 hrs before adding to system. When pH of the water settles at 3-4, the unit is ready and pH will auto calibrate to 5.7-6.5 upon adding to the system.

Calibration can be performed in an active system, with a reservoir change or addition of pH up required after initial pH drop.

How to Recharge

cal_1

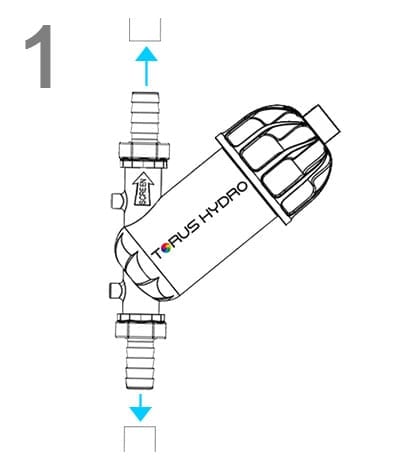

Remove from system.

cal_2

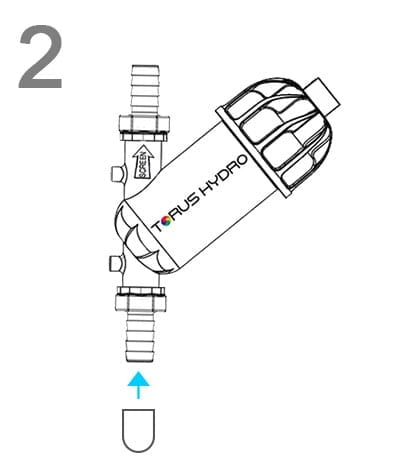

Plug one end of the unit with one of the included end caps.

cal_3

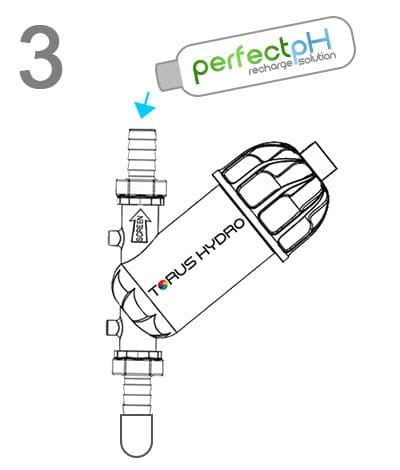

With one end plugged with the end cap,pour the perfectpH Recharge Solution into the other end, until the inside of the unit is filled.

cal_4

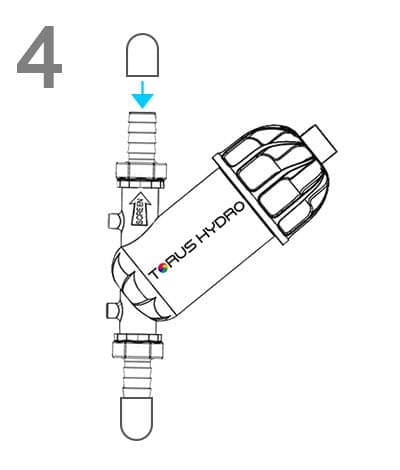

Plug the other end of the unitwith the other included end cap, to create a liquid-tight environment within the unit.

cal_5

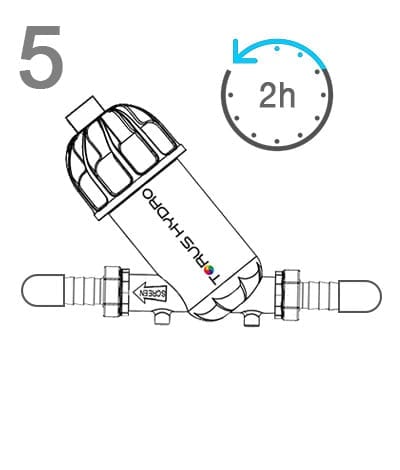

Leave unit to sit with the end caps secured and solution inside for 2 hours.

cal_6

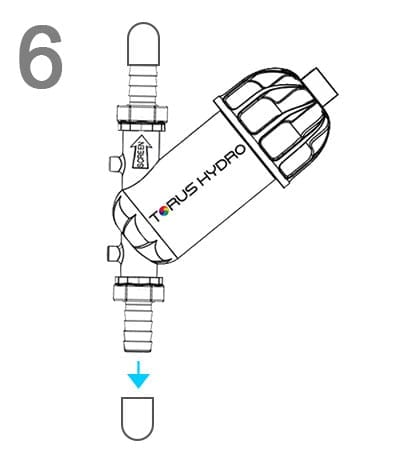

After sitting for 2 hours. Remove one of the end caps and drain the solution out of the unit.

cal_7

Remove the other end cap and rinse the device thoroughly with water. (Standard tap water is suitable)

cal_8

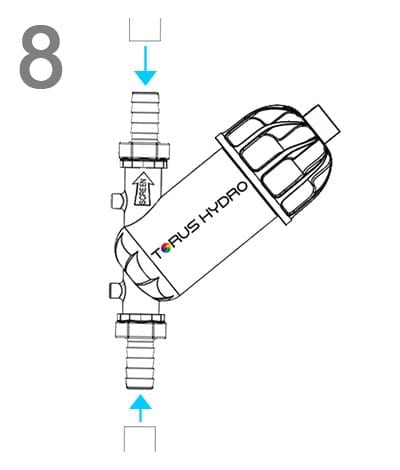

Return the unit to the system by reconnecting the fittings of the unit to the tubing.
